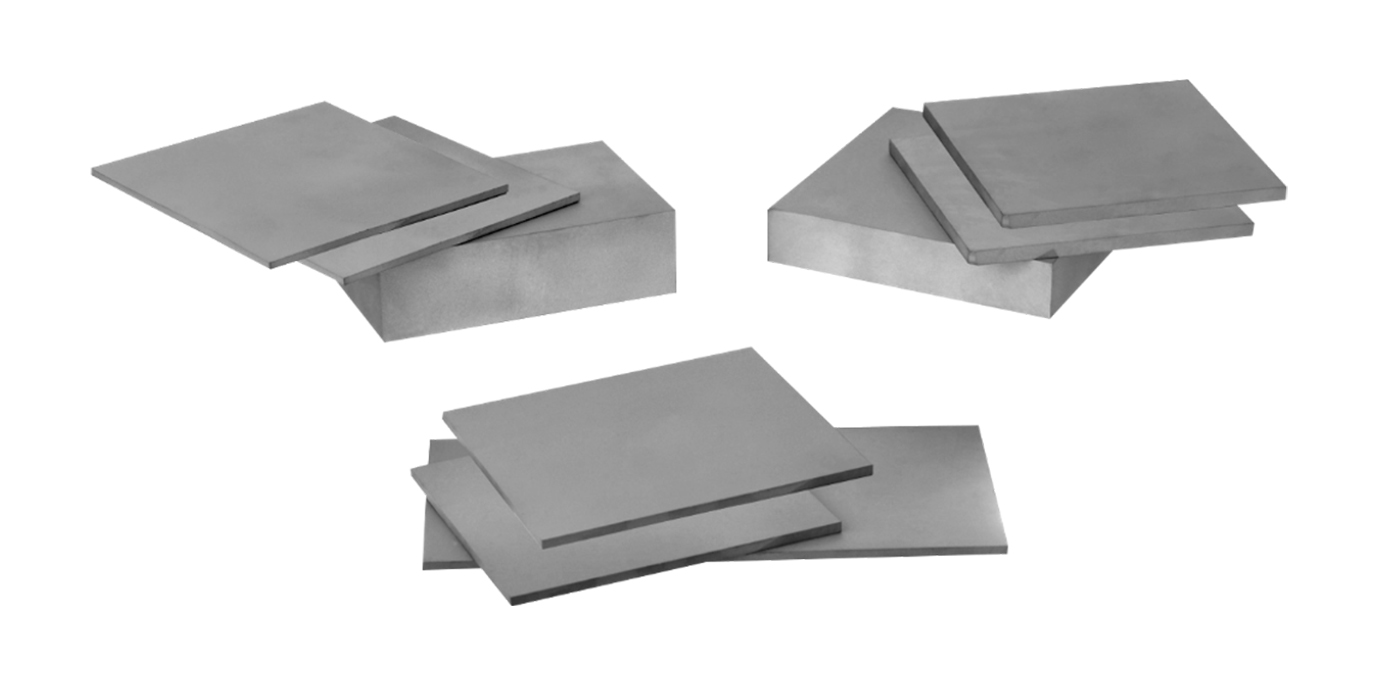

EDM blanks
Competence in hard metal – uncompromising in quality and service for your quality products
Standard - all sides as sintered
Delivery time: approx. 3 to 4 weeks, exept other specific agreements
Standard dimensions
| length (L) (mm) |
tolerance plus
(mm) |
width (B)
(mm) |
tolerance plus
(mm) |
thickness (H)
(mm) |
|
100
|
1
|
100
|
1
|
1 to 100
|
|
105
|
1
|
105
|
1
|
1 to 100
|
|
72
|
1
|
150
|
1
|
1 to 100
|
|
100
|
1
|
150
|
1.5
|
1 to 75
|
|
150
|
1.5
|
150
|
1.5
|
1 to 75
|
|
72
|
1.5
|
200
|
2
|
1 to 75
|
Tolerances for thickness
| thickness (H) (mm) |
tolerance plus (mm) |
| 1 to 10 | 0.4 to 0.8 |
| 11 to 15 | 0.6 to 1.0 |
| 16 to 20 | 0.8 to 1.2 |
| 21 to 25 | 1.0 to 1.4 |
| 26 to 35 | 1.2 to 1.6 |
| 36 to 50 | 1.6 to 2.0 |
| > 51 | 2.0 to 2.5 |
Thickness ground
Both planes defining thickness ground
Side planes as sintered
Standard-tolerance: (L + 1 mm) x (B + 1 mm) x (H + 0,1 mm)
Special shapes (as sintered)
Design as per specific requirement:
- Starting hole
- Outer and inner contours
- Also ground special shapes available
| Max. dimensions: | Lmax (mm) | 350 |
| Bmax (mm) | 150 | |
| Hmax (mm) | 100 |
| Delivery time: |
4 to 6 weeks as sintered 5 to 7 weeks ground |
